Home > Products > Controls,OME Parts > Controls > Pressure Control
Product Categories
Pressure Control
View
<
1 / 2
>

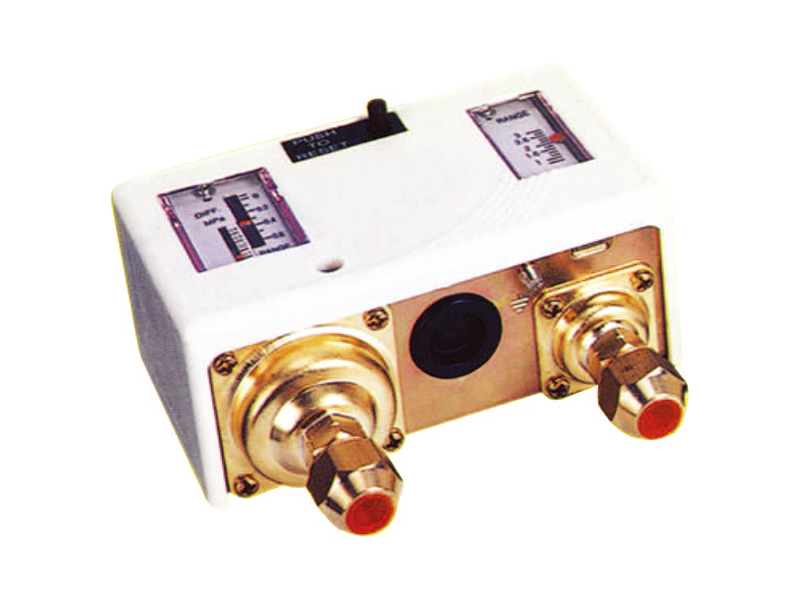

  • LTP830HLM Dual Pressure Control SWITCH VALVE for Air cooler
    LTP830HLM Dual Pressure Control SWITCH VALVE for Air cooler

    Press.Side: Low Side ；Range(bar)【Min.: -0.7  Max.: 6 】；Differential(bar)  【Min.:Duplicate Voltage Disparity≤1；Max.: Duplicate Voltage Disparity≤1 】 ；Factory Setting (bar)  【OFF： 3  ON: Manual Reset 】；Max. Bellows  【Press. (bar)： 16.5 】；Replacement Ranco： -

    Model: LTP830HLM
  • LTP830HLM Dual Pressure Control SWITCH VALVE for Air cooler
    LTP830HLM Dual Pressure Control SWITCH VALVE for Air cooler

    Press.Side: High Side ；Range(bar)【Min.: 8  Max.: 30 】；Differential(bar)  【Min.:Duplicate Voltage Disparity≤4；Max.: Duplicate Voltage Disparity≤4 】 ；Factory Setting (bar)  【OFF： 20  ON: Manual Reset 】；Max. Bellows  【Press. (bar)： 35 】；Replacement Ranco： -

    Model: LTP830HLM
  • LTP830HM Dual Pressure Control SWITCH VALVE for Air cooler
    LTP830HM Dual Pressure Control SWITCH VALVE for Air cooler

    Press.Side: High Side ；Range(bar)【Min.: 8  Max.: 30 】；Differential(bar)  【Min.: Duplicate Voltage Disparity≤4；Max.: Duplicate Voltage Disparity≤4 】 ；Factory Setting (bar)  【OFF： 20  ON: Manual Reset 】；Max. Bellows  【Press. (bar)： 35 】；Replacement Ranco： 012-1548


    Model: LTP830HM
  • LTP830 Dual Pressure Control SWITCH VALVE for Air cooler
    LTP830 Dual Pressure Control SWITCH VALVE for Air cooler

    Press.Side: High Side ；Range(bar)【Min.: 8  Max.: 30 】；Differential(bar)  【Min.: Fixed 3~5；Max.: Fixed 3~5 】 ；Factory Setting (bar)  【OFF： 2  ON: 15 】；Max. Bellows  【Press. (bar)： 35 】；Replacement Ranco： 012-1549

    Model: LTP830
  • LTP830HM Dual Pressure Control SWITCH VALVE for Air cooler
    LTP830HM Dual Pressure Control SWITCH VALVE for Air cooler

    Press.Side: Low Side ；Range(bar)【Min.: -0.7  Max.: 6 】；Differential(bar)  【Min.: 0.6  Max.: 4】 ；Factory Setting (bar)  【OFF： 3  ON: 2 】；Max. Bellows  【Press. (bar)： 16.5 】；Replacement Ranco： 012-1548

    Model: LTP830HM

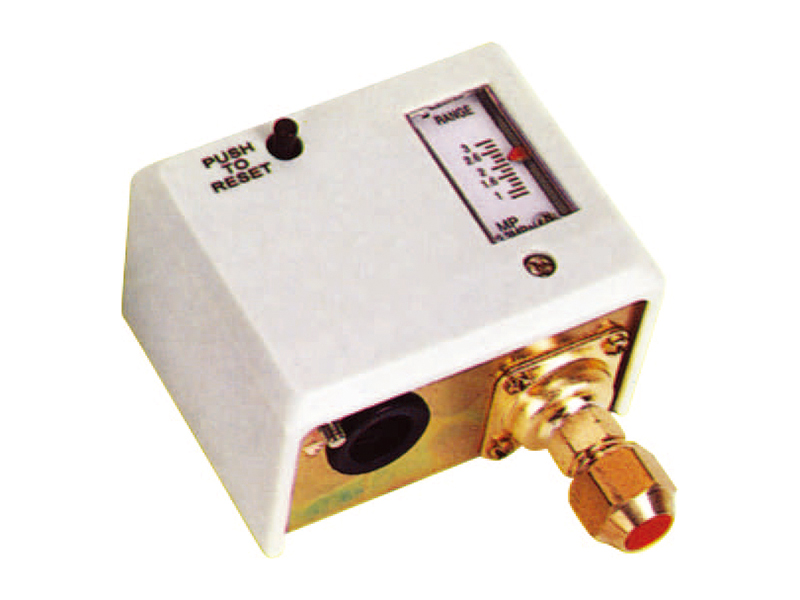

  • LTP530M Single Low Pressure Control SWITCH VALVE for Air cooler AND Air compressor Single Pressure
    LTP530M Single Low Pressure Control SWITCH VALVE for Air cooler AND Air compressor Single Pressure

    Range(bar) 【Min.: 8 ；Max.: 30 】； Differential(bar) Min.: Duplicate Voltage Disparity≤4；Max.: Duplicate Voltage Disparity≤4】 ；Factory Setting (bar) 【OFF： 20 ；ON: Manual Reset 】；Max. Bellows【Press. (bar)： 35 】；Replacement Ranco： - ；Type: Refrigerator Parts；Product name: presuress control；Certificate: UL CUV CE；


    Model: LTP530M
  • LTP530 Single Low Pressure Control SWITCH VALVE for Air cooler AND Air compressor Single Pressure
    LTP530 Single Low Pressure Control SWITCH VALVE for Air cooler AND Air compressor Single Pressure

    Range(bar) 【Min.: 8 ；Max.: 30 】； Differential(bar) Min.: Fixed 3~5；Max.: Fixed 3~5】 ；Factory Setting (bar) 【OFF： 20 ；ON: 15~17 】；Max. Bellows【Press. (bar)： 35 】；Replacement Ranco： - ；Type: Refrigerator Parts；Product name: presuress control；Certificate: UL CUV CE；


    Model: LTP530
  • LTP530D Single Low Pressure Control SWITCH VALVE for Air cooler AND Air compressor Single Pressure
    LTP530D Single Low Pressure Control SWITCH VALVE for Air cooler AND Air compressor Single Pressure

    Range(bar) 【Min.: 5 ；Max.: 30 】； Differential(bar) Min.: 5；Max.: 10】 ；Factory Setting (bar) 【OFF： 20 ；ON: 15 】；Max. Bellows【Press. (bar)： 35 】；Replacement Ranco： 016-200 ；Type: Refrigerator Parts；Product name: presuress control；Certificate: UL CUV CE；


    Model: LTP530D
  • LTP520 Single Low Pressure Control SWITCH VALVE for Air cooler AND Air compressor Single Pressure
    LTP520 Single Low Pressure Control SWITCH VALVE for Air cooler AND Air compressor Single Pressure

    Range(bar) 【Min.: 5 ；Max.: 24 】； Differential(bar) Min.: 2；Max.: 5】 ；Factory Setting (bar) 【OFF： 16 ；ON: 13 】；Max. Bellows【Press. (bar)： 35 】；Replacement Ranco： - ；Type: Refrigerator Parts；Product name: presuress control；Certificate: UL CUV CE；


    Model: LTP520
< 12 > 1/2
