DS-ALL DS-ALL Defrost Timer
Model：DS-ALL

  • Model:DS-ALL;

  • Input Voltage: 90-250VAC/50-60Hz T1-3;

  • Max current operating cycle: Defrost 8A T1-2,Cooling 5A T1-4

  • Max current defrost cycle 5A;

  • Adjustable Timing:Defrost Time 15,21,25,32 min,(+/-1s),Cycle Time 6,8,12,24 hr.(+/-20s)

  • Power consumption 1W;  Applicable Environmental Temperature:0°-160℉(-18℃-71℃)


Add Inquiry Go Buy
  • Description

    • Model:DS-ALL;

    • Input Voltage: 90-250VAC/50-60Hz T1-3;

    • Max current operating cycle: Defrost 8A T1-2,Cooling 5A T1-4

    • Max current defrost cycle 5A;

    • Adjustable Timing:Defrost Time 15,21,25,32 min,(+/-1s),Cycle Time 6,8,12,24 hr.(+/-20s)

    • Power consumption 1W;  Applicable Environmental Temperature:0°-160℉(-18℃-71℃)



  • Product Specifications

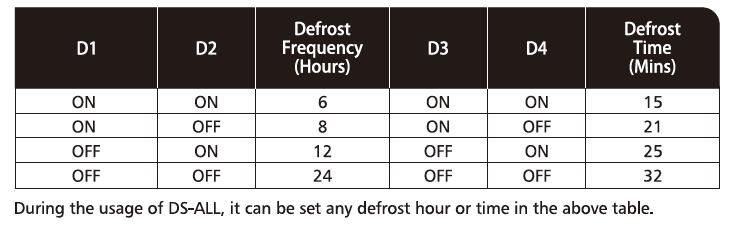

    Make selection if operating cycle and defrost cycle according to option in the above graph.

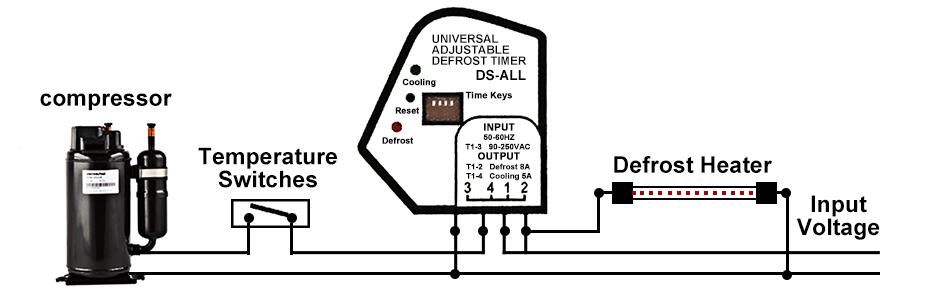

    Electric diagram is in front of the Universal Timer, Terminals 1 and 3 are for power in and terminals 2 and 4 will control operating and defrost cycles.

    After 6 seconds of completing the Installation you can choose to start the timer on a defrost or operating cycle by pressing the reset button.

    A: Press 1 time and the Universal Timer DS-ALL will start on the defrost cycle.

    B: Press 2 times and the Universal Timer DS-ALL will start the compressor operating cycle.
