QD-104 Delay-on-Make Timer
Model：QD-104

Model: QD-104 Input: Line Voltage: 24 VAC; Line Frequency: 50/60 HZ


Add Inquiry Go Buy
  • Description

    • Knob-adjustable OFF delay 12-390 seconds

    • OFF delay purges ducts of residual air to increase efficiency

    Input

    Output

       Voltage: 24 VAC

       Frequency: 50-60 Hz

       Output Ratings: SPDT 1 FORM C

         N.O. Contact: 20 amps resistive

         N.C. Contact: 10 amps resistive

    Motor Load Rating:

         @ 120 VAC: N.O., 2 HP, N.C., 1/2 HP

         @ 240 VAC: N.O., 2 HP, N.C., 1/2 HP

    Time Delay

        10-1,000 seconds adjustable


  • Product Specifications

    Mode of Operation

    When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes and remains energized as long as power is applied. The control is reset by removing power during or after the time delay period.

    Installation

    1. Disconnect power.

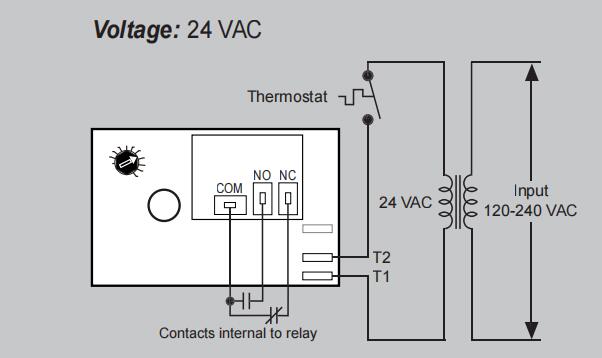

    2. Connect terminals as shown in the wiring diagram below.

    3. Select the desired time delay.

    4. Reapply power, check operation.
