QD-209 Delay-on-Make Timer
Model：QD-209

Model: QD-209 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ Output Ratings:Maximum: 1amps; Minimum: 40 mA; Inrush: 10 amps Time Delay:.03-10 minute adjustable


Add Inquiry Go Buy
  • Description

    Input

      Line Voltage: 18-240 VAC

      Line Frequency: 50/60 HZ

    Output

      Output Ratings:

      Maximum: 1 amps

      Minimum: 40 mA

    Inrush: 10 amps

    Time Delay

      10 minute adjustable

  • Product Specifications

    Mode of Operation

    Upon initial thermostat closure, the load is energized. When the thermostat opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period.

    Installation

    1. Disconnect power.

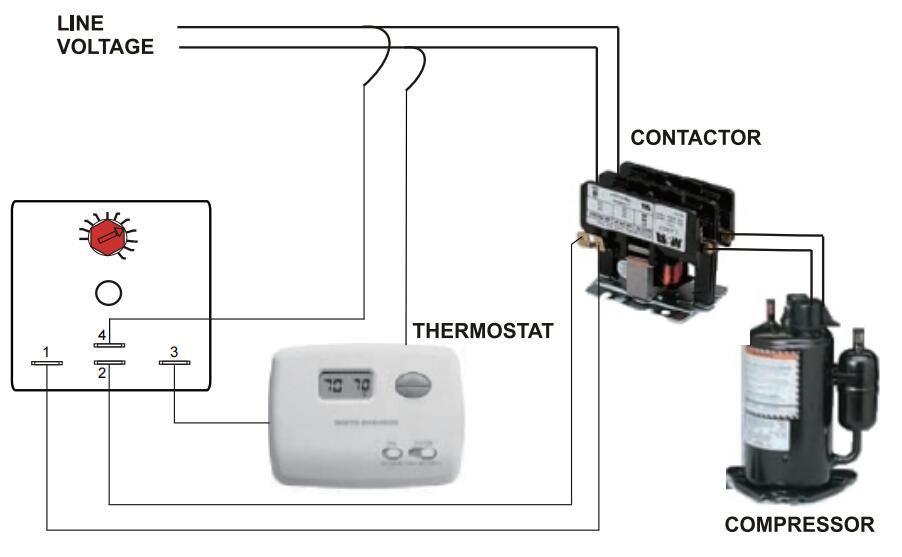

    2. Connect terminals as shown in the wiring diagram below.

    3. Select desired time delay (adjustable models only).

    4. Reapply power, check operation.
