QD-205 Delay-on-Make Timer with 5 Minute Adjustable Delay, Universal 18-240 VAC
Model：QD-205

Model: QD-205 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ Output Ratings:Maximum: 1.5 amps; Minimum: 40 mA; Inrush: 15 amps Time Delay:5 minute fixed


Add Inquiry Go Buy
  • Description

    Input

      Line Voltage: 18-30 VAC

      Line Frequency: 50/60 HZ

    Output

      Output Ratings:

      Maximum: 1.5 amps

      Minimum: 40 mA

    Inrush: 15 amps

    Time Delay

      5 minute fixed

  • Product Specifications

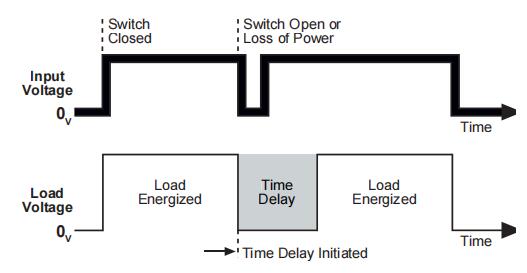

    Mode of Operation

    With application of power, the load is energized. When the thermostat opens or there is a loss of power, the load is de-energized and the delay period begins.

    The compressor will not start again during the delay period. QD Models 204/205/206 provide true themostat interruption protection, even in the presence of a trickle current.

    Installation

    1. Disconnect power.

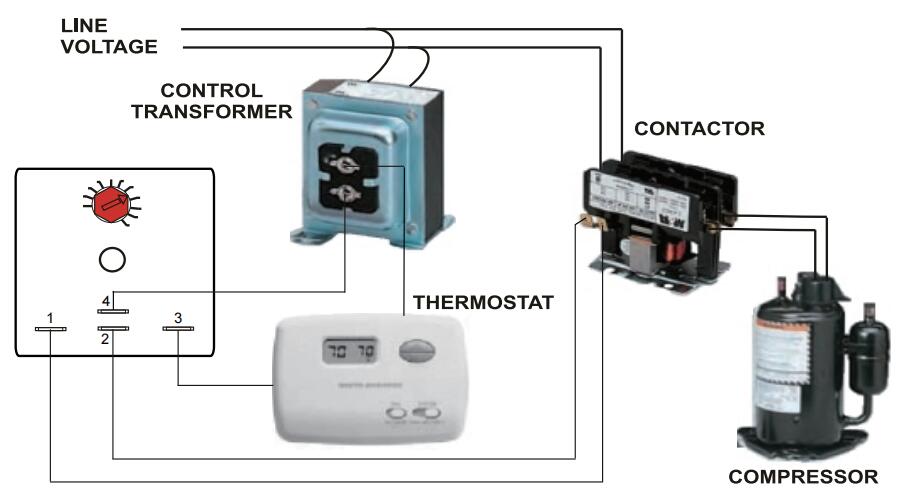

    2. Connect terminals as shown in the wiring diagram below.

    3. Select desired time delay (adjustable models only).

    4. Reapply power, check operation.
