QD-101 Delay-on-Make Timer with 5 Minute Adjustable Delay, Universal 18-240 VAC
Model：QD-101

Model: QD-101 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ


Add Inquiry Go Buy
  • Description

    Input

     Line Voltage: 18-240 VAC/VDC

     Line Frequency: 50/60 HZ

    Output

     Output Ratings:

     Maximum: 1.5 amps

     Minimum: 40 mA

     Inrush: 15 amps

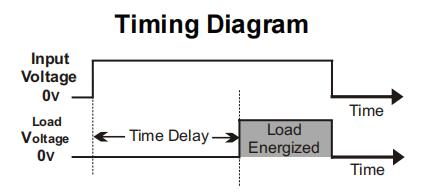

    Time Delay: .03-10 mins. adjustable

                        3 or 5 minute fixed




  • Product Specifications

    Installation

    1. Disconnect power.

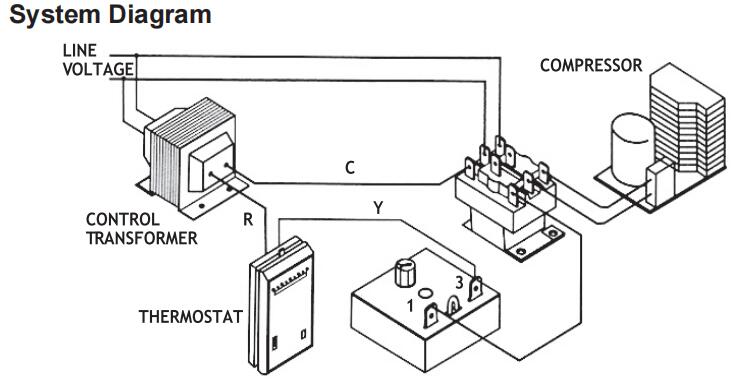

    2. Connect terminals in series with the starting device as shown in the system diagram below.

    3. For 24 VAC circuits, apply control as packaged. For 120/240 VAC circuits, cut the jumper wire.

    4. Select the desired time delay.

    5. Reapply power, check operation.

    6. Trickle current bypass resistor
