QD-175 Delay-on-Make Timer with Adjustable Delay, Universal 18-240 VAC
Model：QD-175

Model: QD-175 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ Output Ratings:Maximum: 1 amps; Minimum: 40 mA; Inrush: 10 amps; Time Delay: 10-1 ,000 seconds Replaces: Mars 32395,Supco TDP68, ICM 175


Add Inquiry Go Buy
  • Description

    • Knob adjustable from 10-1,000 seconds

    • Ideal for "winterstart" kits

    Input

     Line Voltage: 18-240 VAC

     Line Frequency: 50/60 HZ

    Output

     Output Ratings:

     Maximum: 1 amps

     Minimum: 40 mA

     Inrush: 10 amps

    Time Delay: 10-1,000 seconds


  • Product Specifications

    Mode of Operation

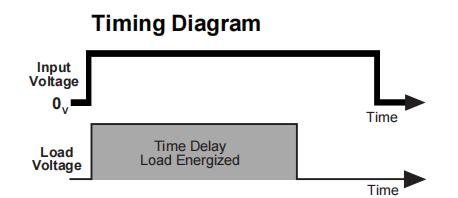

    When power is applied to the input,regardless of the state of the pressure switch, the load is energized and timing begins. After the timing delay is complete,the pressure switch will control the load. The control is reset by removing power during or after the time delay.

    Installation

    1. Disconnect power.

    2. Connect terminals as shown in the wiring diagram below.

    3. Select the desired time delay.

    4. Reapply power, check operation.
