Home > Products > Unit & Parts > Condensing Unit > Box-type
Product Categories
Box-type
View
<
1 / 6
>

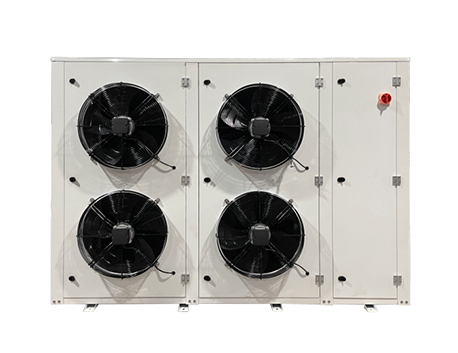

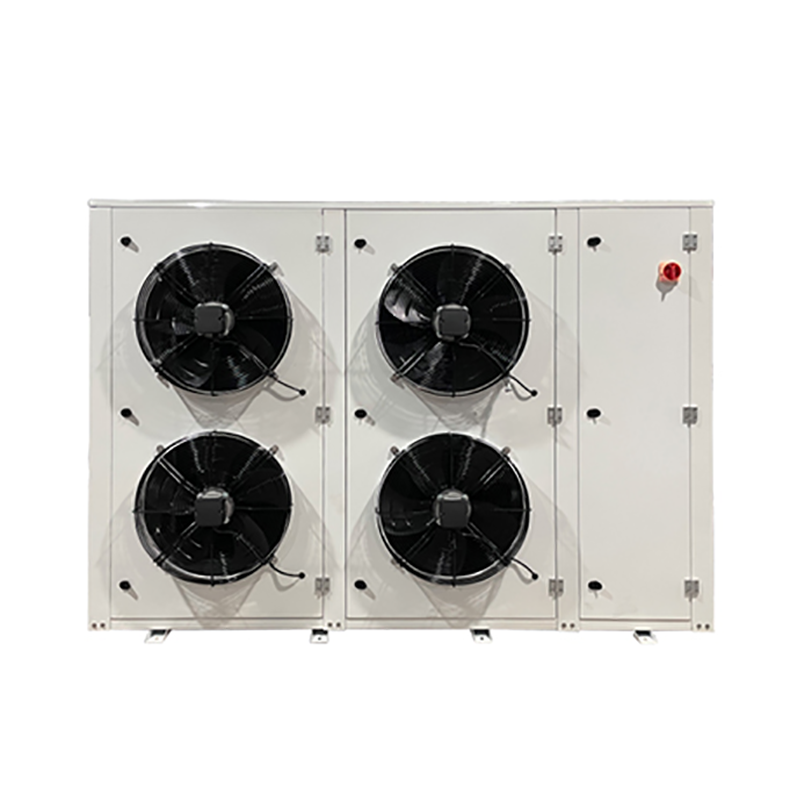

  • LTO-4HE-18Y Box-type Condensing Units
    LTO-4HE-18Y Box-type Condensing Units

    Compressor ： 18HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 4*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 2*380 W, 4 Poles， 59200 kW 】, S： 1-5/8" D： 7/8" Overall Dimension: 2200*940*1570 mm,Refrigerant:R404A,Temperature:-30°C~ -15°C

    Model: LTO-4HE-18Y
  • LTO-4JE-15Y Box-type Condensing Units
    LTO-4JE-15Y Box-type Condensing Units

    Compressor ： 15HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 4*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 2*380 W, 4 Poles， 47360 kW 】, S： 1-5/8" D： 7/8" Overall Dimension: 2200*940*1570 mm,Refrigerant:R404A,Temperature:-30°C~ -15°C

    Model: LTO-4JE-15Y

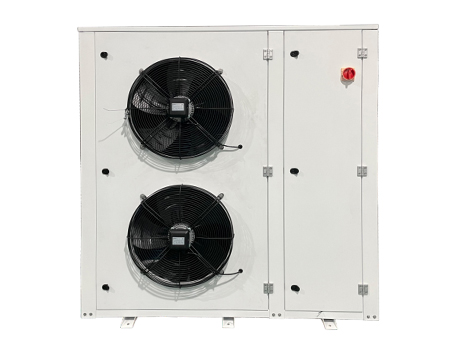

  • LTO-4NES-14Y Box-type Condensing Units
    LTO-4NES-14Y Box-type Condensing Units

    Compressor ： 14HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 2*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 2*380 W, 4 Poles， 40000 kW 】, S： 1-3/8" D： 5/8" Overall Dimension: 1720*940*1570 mm,Refrigerant:R404A,Temperature:-30°C~ -15°C

    Model: LTO-4NES-14Y
  • LTO-4PES-12Y Box-type Condensing Units
    LTO-4PES-12Y Box-type Condensing Units

    Compressor ： 12HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 2*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 2*380 W, 4 Poles， 32000 kW 】, S： 1-3/8" D： 5/8" Overall Dimension: 1720*940*1570 mm,Refrigerant:R404A,Temperature:-30°C~ -15°C

    Model: LTO-4PES-12Y
  • LTO-4TES-9Y Box-type Condensing Units
    LTO-4TES-9Y Box-type Condensing Units

    Compressor ： 9HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 2*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 2*380 W, 4 Poles， 32000 kW 】, S： 1-3/8" D： 5/8" Overall Dimension: 1720*940*1570 mm,Refrigerant:R404A,Temperature:-30°C~ -15°C

    Model: LTO-4TES-9Y
  • LTO-4VES-7Y Box-type Condensing Units
    LTO-4VES-7Y Box-type Condensing Units

    Compressor ： 7HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 2*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 2*380 W, 4 Poles， 24000 kW 】, S： 1-1/8" D： 1/2" Overall Dimension: 1720*940*1570 mm,Refrigerant:R404A,Temperature:-30°C~ -15°C

    Model: LTO-4VES-7Y
  • LTO-4CES-6Y Box-type Condensing Units
    LTO-4CES-6Y Box-type Condensing Units

    Compressor ： 6HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 2*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 2*380 W, 4 Poles， 24000 kW 】, S： 1-1/8" D： 1/2" Overall Dimension: 1920*940*1570 mm,Refrigerant:R404A,Temperature:-30°C~ -15°C

    Model: LTO-4CES-6Y
  • LTO-4DES-5Y Box-type Condensing Units
    LTO-4DES-5Y Box-type Condensing Units

    Compressor ： 5HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 2*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 2*380 W, 4 Poles， 16000 kW 】, S： 1-1/8" D： 1/2" Overall Dimension: 1720*940*1570 mm,Refrigerant:R404A,Temperature:-30°C~ -15°C

    Model: LTO-4DES-5Y
  • LTO-4EES-4Y Box-type Condensing Units
    LTO-4EES-4Y Box-type Condensing Units

    Compressor ： 4HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 1*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 1*380 W, 4 Poles， 14260 kW 】, S： 1-18" D： 1/2" Overall Dimension: 1500*790*970 mm,Refrigerant:R404A,Temperature:-30°C~ -15°C

    Model: LTO-4EES-4Y
< 12345··· > 1/6
