SADK-303 Drying Filter
Model：SADK-303

SAE:3/8; Flow cooling capacity(KW) under pressure drop△p(1 2)=0.07bar; R134a:16.5; R22/R410A:17.8; R407C:17.6; R404A/R507:12.1; R502:11.8; Dimensions(mm)：A:27.5; B:191; D:76; L:246;

Add Inquiry Go Buy
  • Description

    • SAE:3/8;

    • Flow cooling capacity(KW) under pressure drop△p(1 2)=0.07bar;

    • R134a:16.5;

    • R22/R410A:17.8;

    • R407C:17.6;

    • R404A/R507:12.1;

    • R502:11.8;

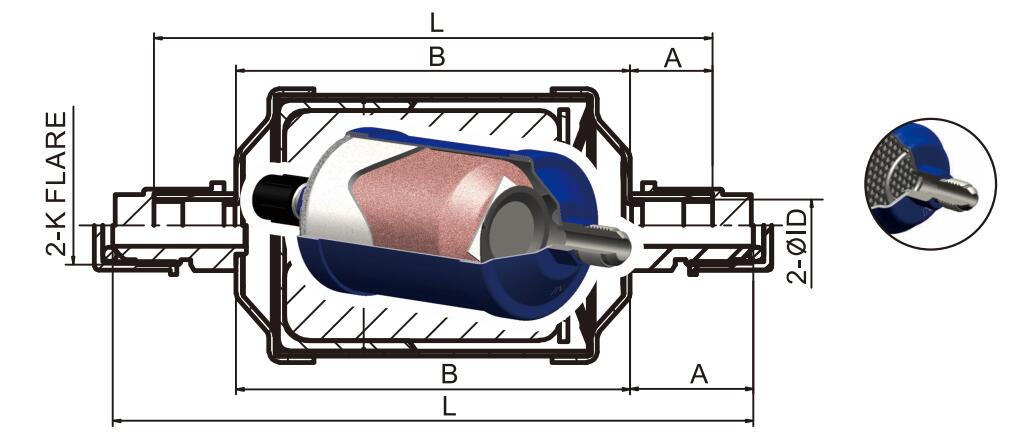

    • Dimensions(mm)：A:27.5; B:191; D:76; L:246;

  • Product Specifications

    Remark:

    1: Capacity to work status: liquid refrigerant temperature tc= 30°C, saturated evaporation temperature=-15"C,the pressure drop△p=0.07bar

    2: It is not recommended used when pressure drop△p over than 0.14 bar
