SEK-033S Drying Filters
Model：SEK-033S

ODF: 3/8；Flow cooling capacity(KW) under pressure drop△p(1 2)=0.07bar, R134a:10.5, R22/R410A：11.5， R407C：11.2， R404A/R507：7.8， R502：7.4； Dimensions(mm)：A:19; B:66; D:42; L:104;

Add Inquiry Go Buy
  • Description

    • ODF: 3/8；

    • Flow cooling capacity(KW) under pressure drop△p(1 2)=0.07bar;

    • R134a:10.5;

    • R22/R410A：11.5;

    • R407C：11.2;

    • R404A/R507：7.8;

    • R502：7.4;

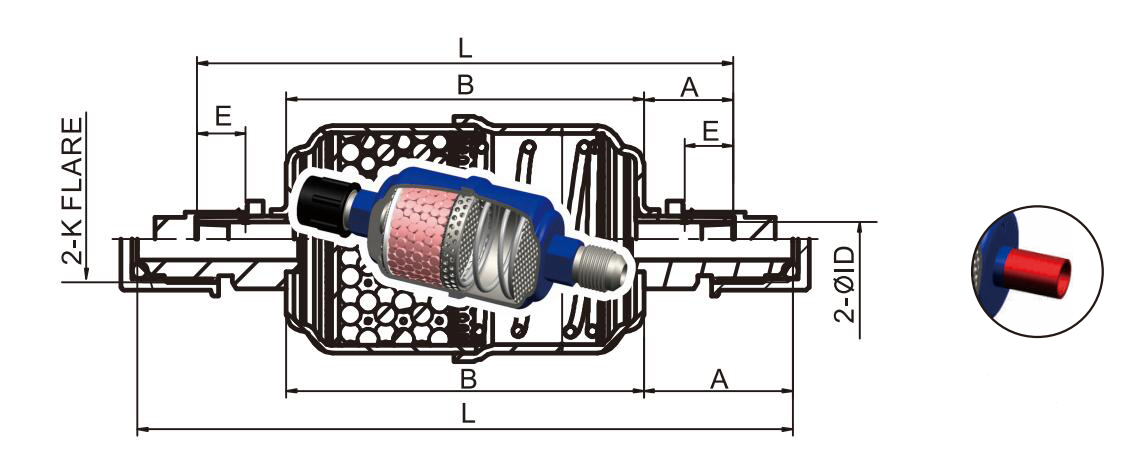

    • Dimensions(mm)：A:19; B:66; D:42; L:104;

  • Product Specifications

    Remark:

    1: Capacity to work status: liquid refrigerant temperature tc= 30°C,saturated evaporation temperature=-15"C,the pressure drop△p=0.07bar

    2: It is not recommended used when pressure drop△p over than 0.14 bar
