SEK-757S Drying Filters
Model：SEK-757S

ODF:7/8;Flow cooling capacity(KW) under pressure drop△p(1 2)=0.07bar;R134a:78.1;R22/R410A：84.8;R407C：83.1;R404A/R507：56.7;R502：54.9;Dimensions(mm)：A:28.5;B:343;D:89;L:400;

Add Inquiry Go Buy
  • Description

    • ODF:7/8;

    • Flow cooling capacity(KW) under pressure drop△p(1 2)=0.07bar;

    • R134a:78.1;

    • R22/R410A：84.8;

    • R407C：83.1;

    • R404A/R507：56.7;

    • R502：54.9;

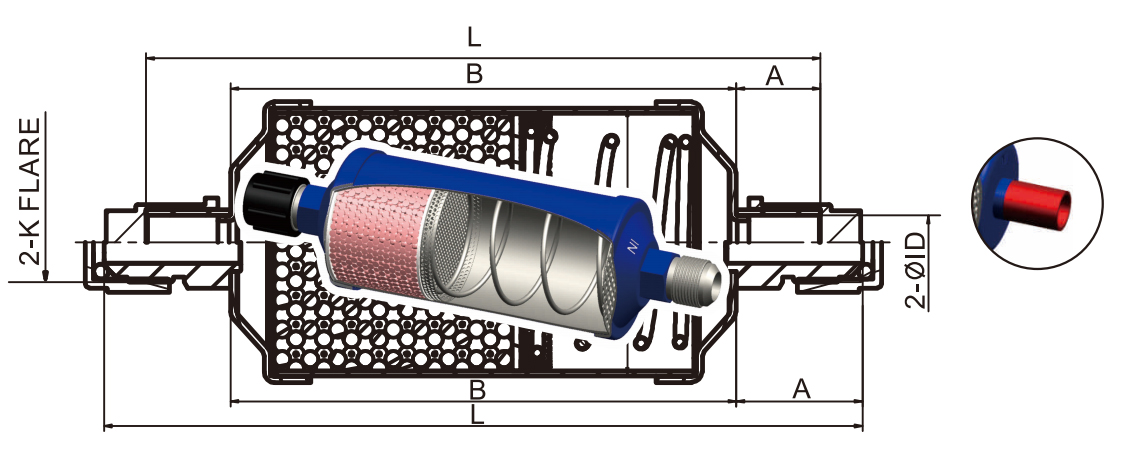

    • Dimensions(mm)：A:28.5;B:343;D:89;L:400;

  • Product Specifications

    Remark:

    1: Capacity to work status: liquid refrigerant temperature tc= 30°C,saturated evaporation temperature=-15"C,the pressure drop△p=0.07bar

    2: It is not recommended used when pressure drop△p over than 0.14 bar
