Two-way Heat Pump Drying Filter
Model：SFK-309S

ODF:1-1/8;  Flow cooling capacity(KW) under pressure drop△p(1 2)=0.36bar;   R50:68.9;  438A:68.9; R435C:67.8; Dimensions(mm):A:29;  B:181;  D:76; L:239;

Add Inquiry Go Buy
  • Description

    • ODF:1-1/8;

    • Flow cooling capacity(KW) under pressure drop△p(1 2)=0.36bar;   R50:68.9;

    • 438A:68.9;

    • R435C:67.8;

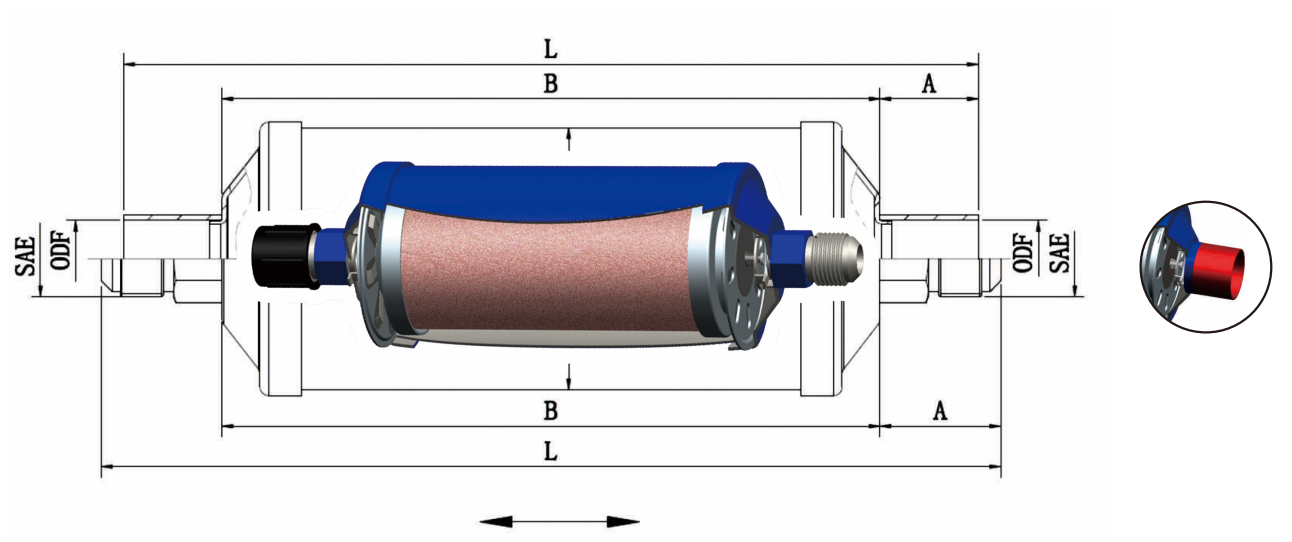

    • Dimensions(mm):A:29;  B:181;  D:76; L:239;


  • Product Specifications

    Remark:

    1: Capacity to work status: liquid refrigerant temperature tc=30°C,saturated evaporation temperature=-15'C,the pressure dropOp=0.07bar

    2: It is not recommended used when pressure drop△p over than 0.14 bar

    3: SDML series corresponding to Danfoss DML series, SDCL series corresponding to Danfoss DCL series
