GE Series Capillary Thermostat
View
4 / 7

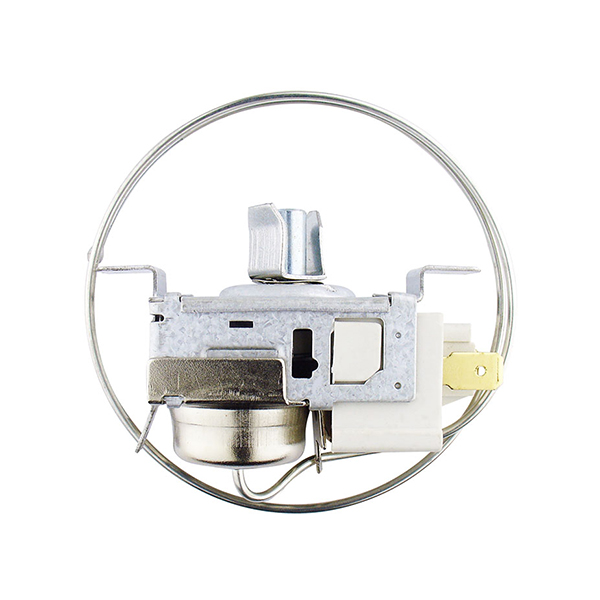

  • 3ART5VC136 GE Series Capillary Thermostat

    Operating Temperature℃【 Cold  ON: -3 ; OFF: -12 】;【Warm ON: 5 ; OFF: -1 】; 【Normal ON: --- ; Normal OFF: --- 】; Capillary Length: 410 mm; Contact style: S.P.S.T. ; Additional Functions: Force Off ; Bulb: --- mm;   VAC;   A; Replaces: WR09X0545 521194-52


    Model: 3ART5VC136

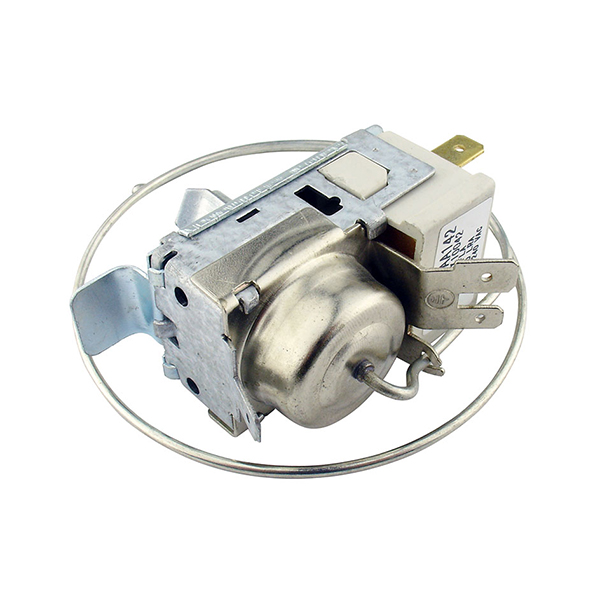

  • 3ART5VAA158 GE Series Capillary Thermostat

    Operating Temperature℃【 Cold  ON: 1.5 ; OFF: -3 】;【Warm ON: 8.5 ; OFF: 5 】; 【Normal ON: --- ; Normal OFF: --- 】; Capillary Length: 420 mm; Contact style: S.P.S.T. ; Additional Functions: Force Off ; Bulb: --- mm;   VAC;   A; Replaces: 450226-11


    Model: 3ART5VAA158
  • 3ART5VAA142 GE Series Capillary Thermostat

    Operating Temperature℃【 Cold  ON: -5 ; OFF: -14.5 】;【Warm ON: 4 ; OFF: -3 】; 【Normal ON: --- ; Normal OFF: --- 】; Capillary Length: 410 mm; Contact style: S.P.S.T. ; Additional Functions: Force Off ; Bulb: --- mm;  120/250 VAC;  10 A; Replaces:   ERWR9X10042


    Model: 3ART5VAA142

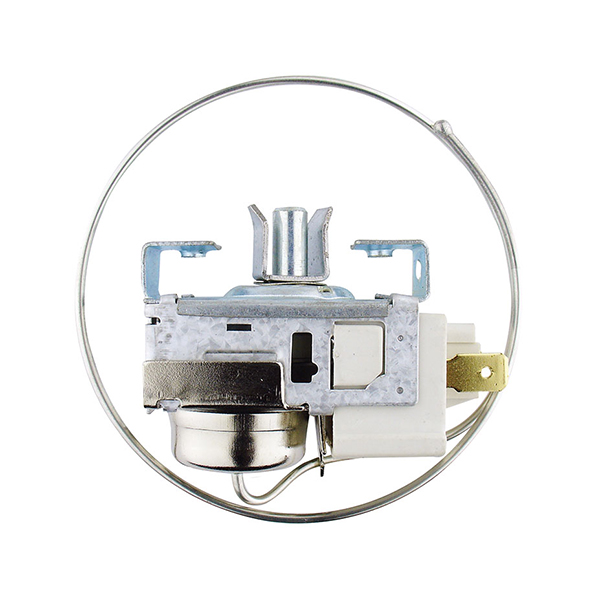

  • 3ART5VAA14 GE Series Capillary Thermostat

    Operating Temperature℃【 Cold  ON: 0.8 ; OFF: -8.5 】;【Warm ON: 6 ; OFF: -2 】; 【Normal ON: --- ; Normal OFF: --- 】; Capillary Length: 330 mm; Contact style: S.P.S.T. ; Additional Functions: Force Off ; Bulb: --- mm;   VAC;   A; Replaces:   ERWR9X499


    Model: 3ART5VAA14

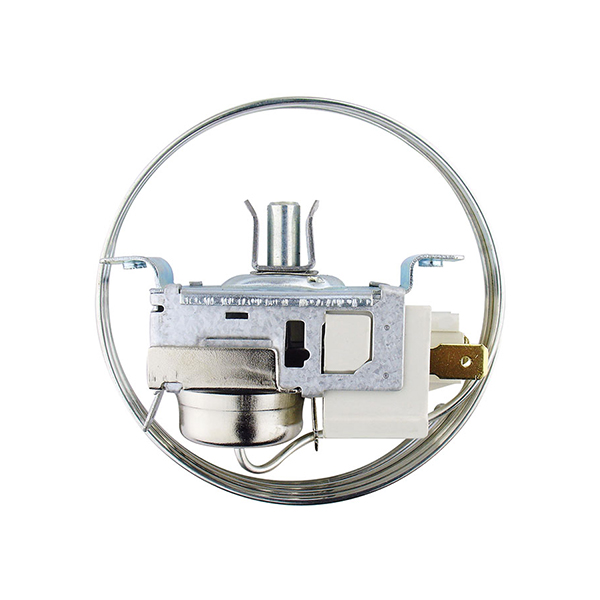

  • 3ART5VAA125 GE Series Capillary Thermostat

    Operating Temperature℃【 Cold  ON: -23 ; OFF: -32 】;【Warm ON: -15 ; OFF: -21.5 】; 【Normal ON:  ; Normal OFF:  】; Capillary Length: 1015 mm; Contact style: S.P.S.T. ; Additional Functions: Force Off ; Bulb:  mm;  120/250 VAC;  10 A; Replaces:


    Model: 3ART5VAA125

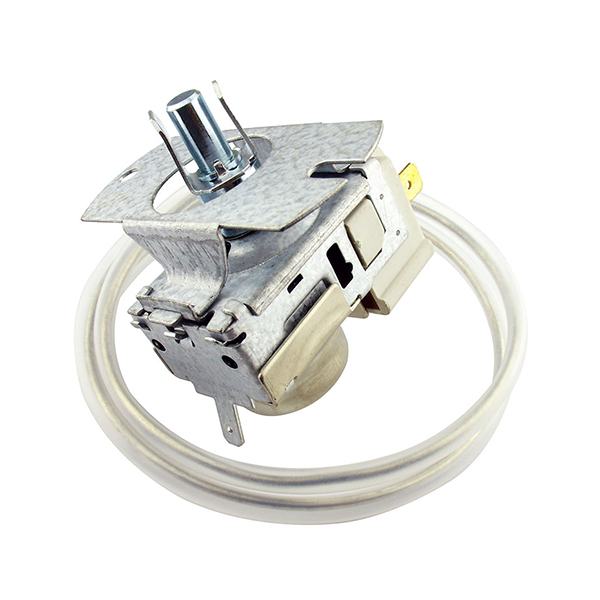

  • 3ART5RWH6 GE Series Capillary Thermostat

    Operating Temperature℃【 Cold  ON: 20 ; OFF: 17 】;【Warm ON: 33 ; OFF: 31 】; 【Normal ON:  ; Normal OFF:  】; Capillary Length: 420 mm; Contact style: S.P.S.T. ; Additional Functions:  ; Bulb:  mm;   VAC;   A; Replaces:


    Model: 3ART5RWH6
  • 3ART5LP5 GE Series Capillary Thermostat

    Operating Temperature℃【 Cold  ON: -10.5 ; OFF: -24.5 】;【Warm ON: -4.5 ; OFF: -16 】; 【Normal ON: --- ; Normal OFF: --- 】; Capillary Length: 690 mm; Contact style: S.P.S.T. ; Additional Functions: Force Off ; Bulb: --- mm;  120/250 VAC;  10 A; Replaces:   ER819470


    Model: 3ART5LP5

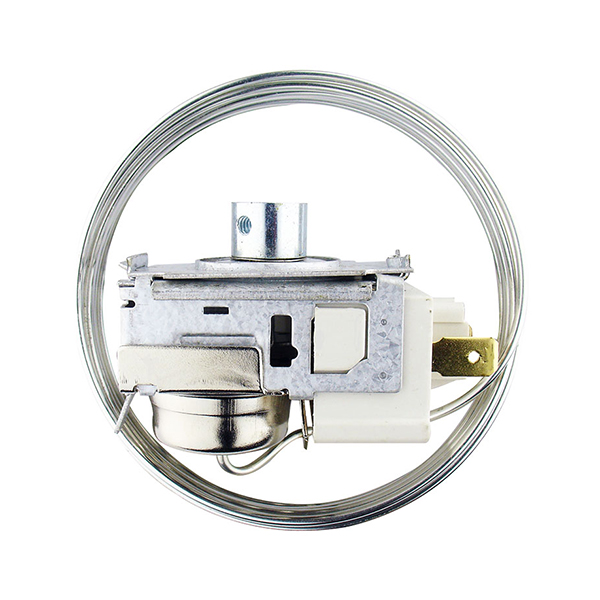

  • 3ART5KT49 GE Series Capillary Thermostat

    Operating Temperature℃【 Cold  ON: --- ; OFF: -34.5 】;【Warm ON: -5.5 ; OFF: --- 】; 【Normal ON:  ; Normal OFF:  】; Capillary Length: 2000 mm; Contact style: S.P.S.T. ; Additional Functions: Force Off ; Bulb:  mm;   VAC;   A; Replaces: GC601


    Model: 3ART5KT49

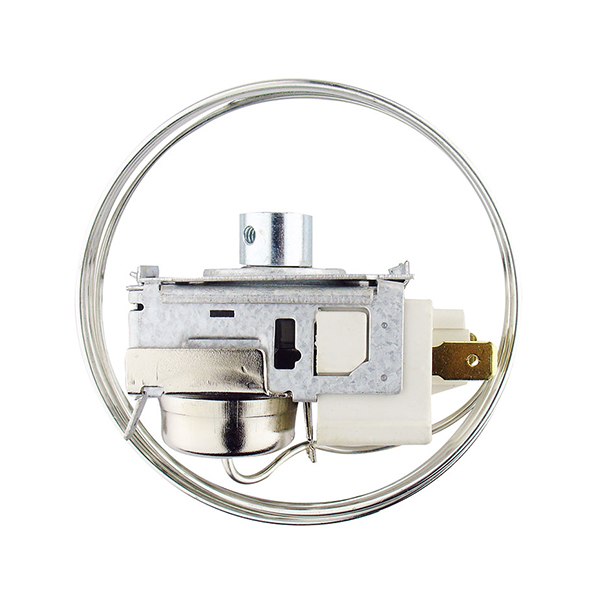

  • 3ART5KT41 GE Series Capillary Thermostat

    Operating Temperature℃【 Cold  ON: --- ; OFF: -27 】;【Warm ON: 3.5 ; OFF: --- 】; 【Normal ON:  ; Normal OFF:  】; Capillary Length: 1100 mm; Contact style: S.P.S.T. ; Additional Functions: Force Off ; Bulb:  mm;   VAC;   A; Replaces: GC501


    Model: 3ART5KT41
