A Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 1-20 seconds, and off at 40-110 seconds.
A Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 1-20 seconds, and off at 40-110 seconds.
●Direct Replacement for Most Fan & Heat Sequencing Functions.
●24 Volt Input Control .
●Contacts Designated M1-M2 of a Multi-timing Sequencer will Turn On First and Turn Off Last, as Required by UL for Electric Heating Applications.
●Five Second on Delay Between all Subsequent Stages, Unless they Function Together.
Applications:Oil furnaces,Gas furnaces,Heat pumps,Electric furnaces
Replacement Part: Lennox 12F20 and 58C9701; Goodman B129096; York 525-37322-000; Zettler ZC24A34-1; Interstate Electric I-9:IES24A34-1; White Rodgers 24A34-1, 24A34-7 AND 24A34-13; Klixon 6000AONI-98; GEM GS101; GLOBAL 24CA-1; Mars 33241 and 33841; WATSCO TDR10; KLIXON 600AONI-98; ROBERTSHAW 611-241;
Off:40 - 110 Seconds
On:1 - 20 Seconds

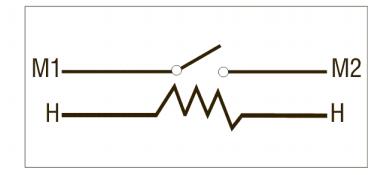

Sequencer Wiring Diagram
*Note all Sequencers include a 24 volt heater except the AL113 which has a 240 volt heater.
