YX Series Capillary Thermostat
View
2 / 2

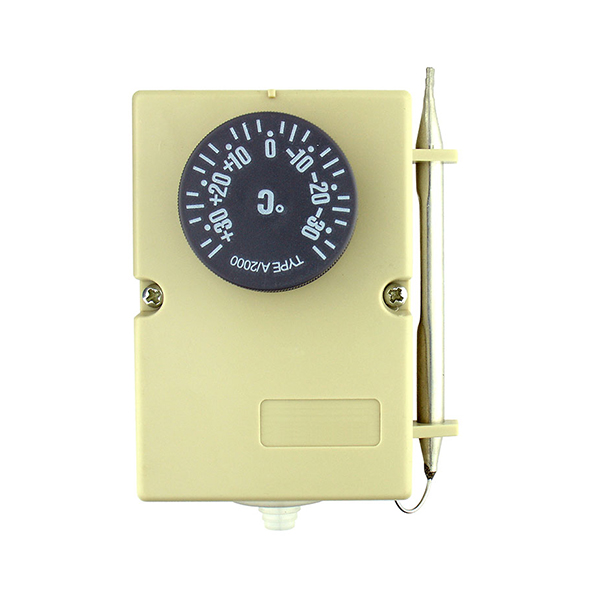

  • A2000 YX Series Capillary Thermostat

    Operating Temperature℃【 Cold  Diff : 4 ; OFF: -35 】;【Warm Diff: 4 ; OFF: 35 】; Capillary Length: --- mm; Contact style: S.P.D.T. ; Bulb: 6.5-66 mm;  120/250 VAC;  16 A


    Model: A2000
  • 711x YX Series Capillary Thermostat

    Operating Temperature℃【 Cold  Diff : 4 ; OFF: -35 】;【Warm Diff: 4 ; OFF: 35 】; Capillary Length: 1500 mm; Contact style: S.P.D.T. ; Bulb: 6-78 mm;  120/250 VAC;  16 A


    Model: 711x
  • 711(50-300) YX Series Capillary Thermostat

    Operating Temperature℃【 Cold  Diff : 7 ; OFF: (50) 】;【Warm Diff: 7 ; OFF: 300 】; Capillary Length: 1500 mm; Contact style: S.P.D.T. ; Bulb: 3-107 mm;  120/250 VAC;  16 A


    Model: 711(50-300)
  • 711(0-120) YX Series Capillary Thermostat

    Operating Temperature℃【 Cold  Diff : 7 ; OFF: (0) 】;【Warm Diff: 7 ; OFF: 120 】; Capillary Length: 1500 mm; Contact style: S.P.D.T. ; Bulb:  mm;  120/250 VAC;  16 A


    Model: 711(0-120)
  • 711(0-90) YX Series Capillary Thermostat

    Operating Temperature℃【 Cold  Diff : 4 ; OFF: (0) 】;【Warm Diff: 4 ; OFF: 90 】; Capillary Length: 1500 mm; Contact style: S.P.D.T. ; Bulb:  mm;  120/250 VAC;  16 A


    Model: 711(0-90)
  • 711(0-60) YX Series Capillary Thermostat

    Operating Temperature℃【 Cold  Diff : 4 ; OFF: (0) 】;【Warm Diff: 4 ; OFF: 60 】; Capillary Length: 1500 mm; Contact style: S.P.D.T. ; Bulb:  mm;  120/250 VAC;  16 A


    Model: 711(0-60)
  • 711(0-50) YX Series Capillary Thermostat

    Operating Temperature℃【 Cold  Diff : 4 ; OFF: (0) 】;【Warm Diff: 4 ; OFF: 50 】; Capillary Length: 1500 mm; Contact style: S.P.D.T. ; Bulb:  mm;  120/250 VAC;  16 A


    Model: 711(0-50)
  • 711(0-40) YX Series Capillary Thermostat

    Operating Temperature℃【 Cold  Diff : 4 ; OFF: (0) 】;【Warm Diff: 4 ; OFF: 40 】; Capillary Length: 1500 mm; Contact style: S.P.D.T. ; Bulb: 6-75 mm;  120/250 VAC;  16 A


    Model: 711(0-40)

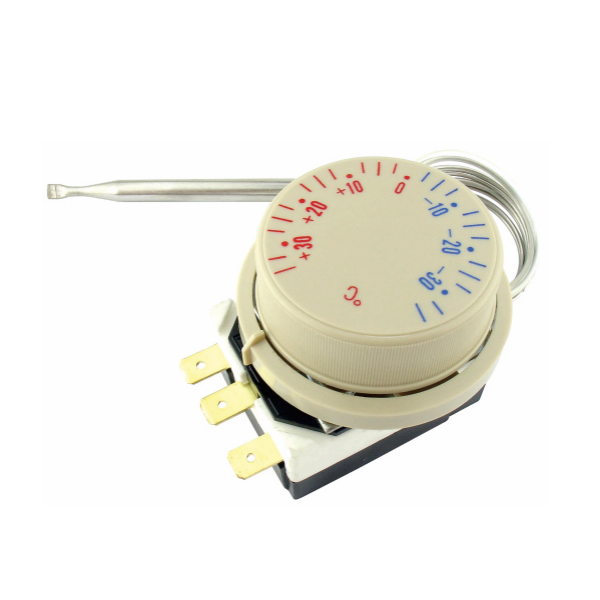

  • 711 YX Series Capillary Thermostat

    Operating Temperature℃【 Cold  Diff : 4 ; OFF: -35 】;【Warm Diff: 4 ; OFF: 35 】; Capillary Length: 1500 mm; Contact style: S.P.D.T. ; Bulb: 6-78 mm;  120/250 VAC;  16 A


    Model: 711
