In the HVAC installation industry, the stability and durability of outdoor unit support brackets are non-negotiable—they directly impact equipment service life, operational efficiency, and even public safety. The TB-125A floor-standing bracket stands out as a premium solution for small split-system air conditioner outdoor units, engineered with high load capacity, climate-adaptive materials, and a space-saving design. This guide breaks down its core specifications, key advantages, real-world applications, and professional installation guidelines, providing actionable insights for HVAC installers, contractors, and project procurers worldwide.

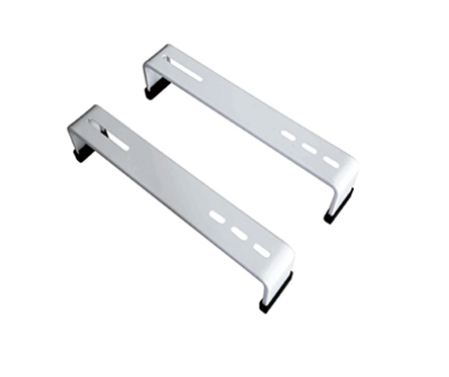

Core Specifications of TB-125A Bracket
All technical parameters of the TB-125A are optimized for standard and custom HVAC installation needs, with quantifiable performance metrics for easy matching and selection:
Model: TB-125A
Material Options: Cold rolled steel / Hot dipped galvanized steel / 304 stainless steel
Overall Dimensions (L×W×H): 100 mm × 500 mm × 80 mm
Material Thickness: 2.0 mm
Net Weight: 2 kg
Maximum Load Capacity: 250 kg
Design Type: Floor-standing triangular support structure
Customization Support: Full OEM/ODM (dimensions, thickness, color, material)
Key Advantages of the TB-125A Bracket
The TB-125A is designed to solve the most common pain points in HVAC outdoor unit installation—from insufficient load capacity and corrosion in harsh environments to space constraints and vibration noise. Its core strengths align with global HVAC installation standards and on-site practical needs:
1. Ultra-High Load Capacity with Excess Safety Redundancy
Compliant with national and international HVAC installation standards (requiring bracket load capacity to be at least 4x the weight of the AC outdoor unit), the TB-125A’s 250kg maximum load far exceeds the weight of typical household small split-system outdoor units (50-90kg). This excess safety redundancy ensures the bracket remains stable and deformation-free even in extreme weather (strong winds, heavy snow, seismic activity), eliminating the risk of equipment falling or damage.
2. Three Material Options for Global Climate Adaptability
Different installation environments demand varying levels of corrosion resistance— the TB-125A offers tailored material choices to match regional climate conditions, with no compromise on structural strength:
Cold Rolled Steel: Cost-effective and durable, ideal for dry indoor spaces, covered balconies, or regions with mild, low-humidity climates.
Hot Dipped Galvanized Steel: Treated with industrial hot-dip galvanization, delivering superior rust and moisture resistance for outdoor installations in rainy, humid, or high-humidity areas (e.g., Southeast Asia, Southern China).
Stainless Steel: Premium corrosion protection for coastal regions with high salt spray, industrial areas with chemical fumes, or projects requiring long-term (10+ years) rust-free performance—eliminating all corrosion concerns.
3. Thickened Profile + Triangular Structure for Unmatched Stability
With a 2.0mm thick main body (thicker than the industry average 1.5mm for small AC brackets), the TB-125A resists bending and deformation under long-term static load. Its integrated triangular support structure distributes weight evenly across the base, maximizing stability while occupying minimal horizontal space—perfect for compact installation areas (e.g., small balconies, narrow equipment platforms).
4. Full Flexibility with OEM/ODM Customization
The TB-125A supports one-stop customization to adapt to special engineering projects and brand-specific requirements:
Adjust key dimensions (length, width, height) for non-standard outdoor unit sizes;
Modify material thickness for enhanced load capacity in commercial installations;
Custom surface color and logo printing for brand labeling;
Optimize support foot design for specific installation surfaces (e.g., concrete, metal platforms).Customization lead times are streamlined for bulk and small-batch orders, matching the fast pace of HVAC project schedules.
5. Lightweight Design for Easy Installation & Vibration Damping
Despite its robust build, the TB-125A weighs only 2kg—making it easy to transport, carry, and install by a single technician (no heavy lifting equipment required). When paired with rubber vibration-damping pads (recommended), it breaks the rigid connection between the operating AC unit and the ground/floor slab, significantly reducing low-frequency vibration transmission and noise pollution into buildings, improving indoor comfort for residents and commercial occupants.
Real-World Application Scenarios
As a dedicated floor-standing bracket for small split-system AC outdoor units, the TB-125A excels in solving site-specific installation challenges across residential, commercial, and industrial projects. It is the ideal choice for the following three high-frequency scenarios:
Scenario 1: Ground Installation – Moisture & Snow Protection
Direct ground placement of AC outdoor units risks water submersion and snow blockage— the TB-125A’s elevated design (80mm height) addresses both issues:
Moisture Protection: Lifts the unit above ground level, preventing rainwater accumulation from submerging the control panel and electrical components, avoiding short circuits and equipment failure.
Snow Protection: Critical for cold regions (North America, Northern Europe, Northern China), the elevated design ensures the unit’s air intake and exhaust vents are not blocked by snowdrifts, maintaining efficient heating and cooling operation in winter.
Scenario 2: Roof/Flat Platform Installation – Waterproof Membrane Protection
Commercial buildings, high-rises, and residential complexes feature waterproof membranes on roofs and flat platforms— heavy AC units placed directly on these membranes cause long-term damage and water leakage. The TB-125A distributes the unit’s weight evenly across its four support feet, minimizing pressure on the waterproof layer. It also creates airflow space beneath the unit, facilitating drainage and heat dissipation to prevent overheating of the AC compressor.
Scenario 3: Compact Space Installation – Balconies & Narrow Equipment Zones
Small balconies, narrow alleyways, and compact equipment zones have strict space constraints— the TB-125A’s compact triangular structure (100×500×80mm) fits into tight spaces while maintaining full load capacity. Its lightweight design also eliminates installation difficulties in areas with limited access (e.g., high-floor balconies with no elevator access).
Professional Installation Guidelines & Precautions
Proper installation is key to maximizing the TB-125A’s performance and service life. Follow these industry-standard guidelines for safe, reliable, and long-term use—suitable for all installation scenarios and material types:
Pre-Installation Preparation
Inspect the installation surface: Ensure it is solid, flat, and able to bear at least 300kg (exceeding the bracket’s maximum load) to avoid subsidence.
Clean the surface: Remove debris, oil, and loose concrete/tiles to ensure a firm fit between the bracket and the surface.
Prepare accessories: Equip with rubber vibration-damping pads (5-10mm thickness) and anti-slip bolts for enhanced stability (accessories can be customized with the bracket).
Step-by-Step Installation
Place the TB-125A bracket on the prepared flat surface and adjust to a horizontal position (use a level to verify).
Fix the bracket to the surface with expansion bolts (for concrete) or self-tapping screws (for metal platforms)—tighten all bolts to avoid loosening from vibration.
Lay rubber vibration-damping pads on the bracket’s support points, then place the AC outdoor unit on top and secure it with the unit’s original fixing bolts.
Conduct a final check: Shake the unit gently to confirm no wobbling; ensure the bracket is fully horizontal and all bolts are tightened.
Long-Term Maintenance & Inspection
Seasonal Inspection: Check the bracket for rust, loose bolts, or deformation every 3 months (or after extreme weather such as typhoons, heavy snow, or earthquakes).
Corrosion Prevention: For cold rolled steel models in outdoor use, apply anti-rust paint once a year to extend service life.
Vibration Pad Replacement: Replace rubber vibration-damping pads every 2-3 years (or when cracks/aging are found) to maintain noise reduction performance.
Why the TB-125A Is the Go-To Choice for HVAC Professionals
The TB-125A bracket combines compliance with global installation standards, climate adaptability, structural stability, and customization flexibility—addressing the core needs of HVAC installers, contractors, and project procurers. Its 250kg load capacity, 2.0mm thickened material, and triangular support structure ensure safety and durability, while three material options and full OEM/ODM support make it suitable for global projects (from residential renovations to large-scale commercial construction).
Weighing only 2kg, it also reduces installation labor and transportation costs, while its vibration-damping design improves indoor comfort— a win-win for installers and end users. For standard small split-system AC outdoor unit installations or custom engineering projects, the TB-125A delivers consistent performance, reliability, and cost-effectiveness.
