Model: FN-43 ; Size: 1015x180x680 mm; Heat Exchanging Area: 43 ㎡; HP: 6 ; Pattern: 4x13 ; Inlet: 22 mm; Oulet: 19 mm; Cap: 14.8. Kw; Fin Pitch: 2.5 mm; Fin Length: 950 mm; Fan: 400x2 mm

Model: FN-36 ; Size: 1015x180x580 mm; Heat Exchanging Area: 36 ㎡; HP: 5 ; Pattern: 4x11 ; Inlet: 22 mm; Oulet: 19 mm; Cap: 12.6 Kw; Fin Pitch: 2.5 mm; Fin Length: 950 mm; Fan: 400x2 mm

Model: FN-33 ; Size: 900x200x480 mm; Heat Exchanging Area: 33 ㎡; HP: 4 ; Pattern: 5x9 ; Inlet: 19 mm; Oulet: 16 mm; Cap: 11.2 Kw; Fin Pitch: 2.45 mm; Fin Length: 840 mm; Fan: 350x2 mm

Model: FN-28 ; Size: 900x180x430 mm; Heat Exchanging Area: 28 ㎡; HP: 3.5 ; Pattern: 4x8 ; Inlet: 19 mm; Oulet: 16 mm; Cap: 8.2 Kw; Fin Pitch: 2.1 mm; Fin Length: 840 mm; Fan: 350x2 mm

Model: FN-21 ; Size: 840x180x430 mm; Heat Exchanging Area: 21 ㎡; HP: 3 ; Pattern: 3x8 : ; Inlet: 16 mm; Oulet: 12 mm; Cap: 6.1 Kw; Fin Pitch: 1.95 mm; Fin Length: 790 mm; Fan: 300x2 mm

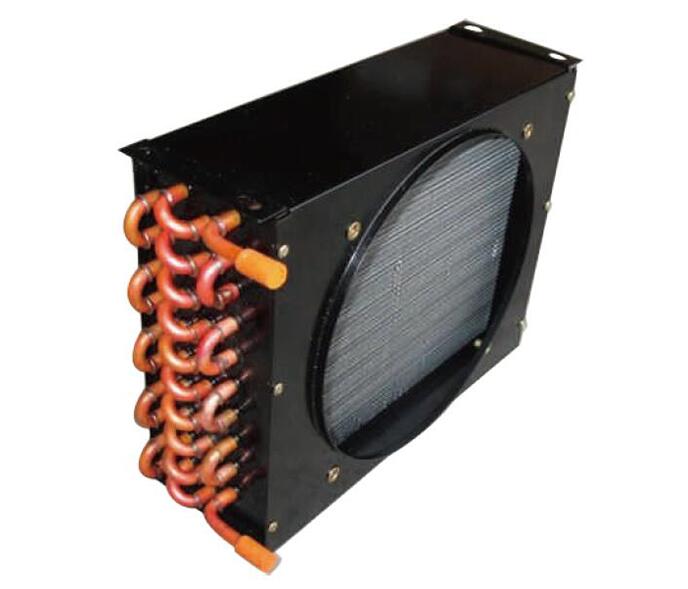

Model: FN-25 ; Size: 750x180x680 mm; Heat Exchanging Area: 25 ㎡; HP: 3.5 ; Pattern: 4x11 ; Inlet: 19 mm; Oulet: 16 mm; Cap: 8.1 Kw; Fin Pitch: 3 mm; Fin Length: 660 mm; Fan: 400x1 mm

Model: FN-22 ; Size: 590x180x530 mm; Heat Exchanging Area: 22 ㎡; HP: 3 ; Pattern: 5x10 ; Inlet: 19 mm; Oulet: 16 mm; Cap: 6.4 Kw; Fin Pitch: 2.6 mm; Fin Length: 530 mm; Fan: 400x1 mm

Model: FN-18 ; Size: 590x180X530 mm; Heat Exchanging Area: 18 ㎡; HP: 2.5 ; Pattern: 4x10 ; Inlet: 19 mm; Oulet: 16 mm; Cap: 5.2 Kw; Fin Pitch: 2.55 mm; Fin Length: 530 mm; Fan: 400x1 mm

Model: FN-15 ; Size: 550x180X480 mm; Heat Exchanging Area: 15 ㎡; HP: 2 ; Pattern: 4x9 ; Inlet: 16 mm; Oulet: 12 mm; Cap: 4.4 Kw; Fin Pitch: 2.55 mm; Fin Length: 490 mm; Fan: 350x1 mm
