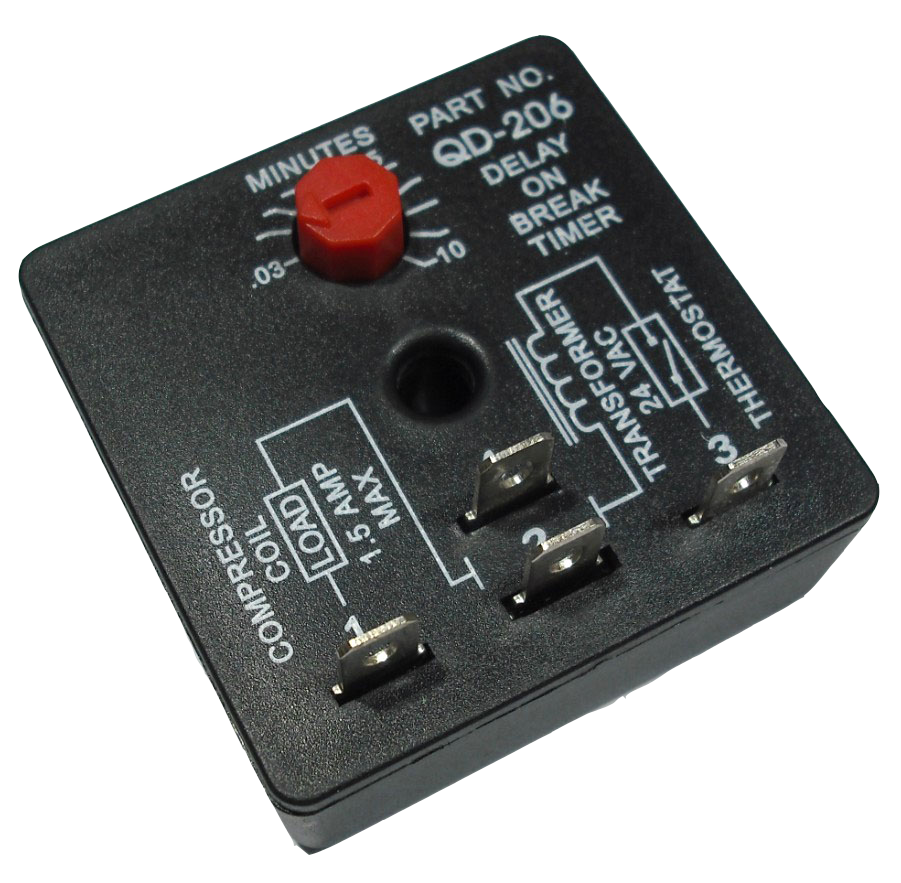

Model: QD-206 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ Output Ratings:Maximum: 1amps; Minimum: 20 mA; Inrush: 10 amps Time Delay:.03-10 minute adjustable

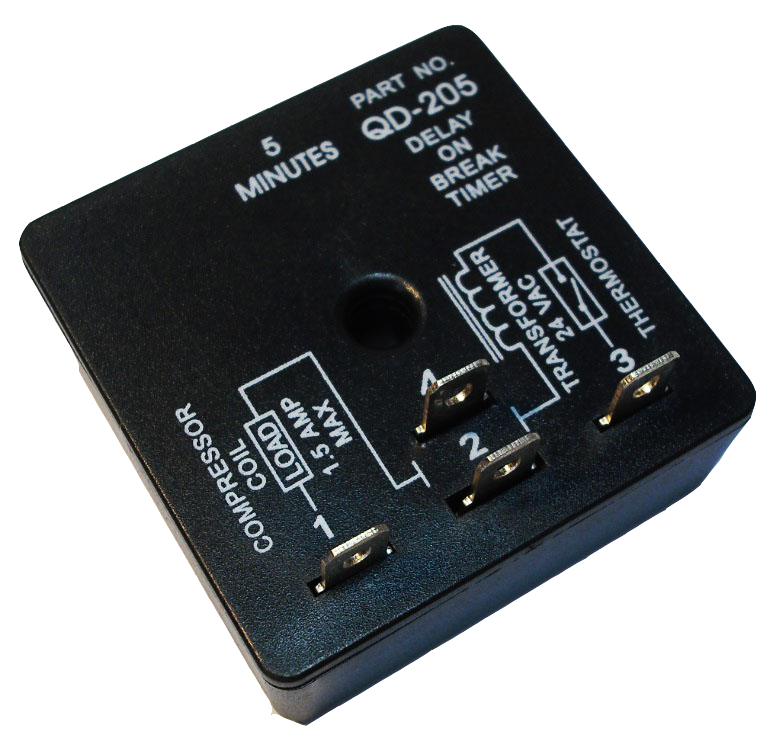

Model: QD-205 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ Output Ratings:Maximum: 1.5 amps; Minimum: 40 mA; Inrush: 15 amps Time Delay:5 minute fixed

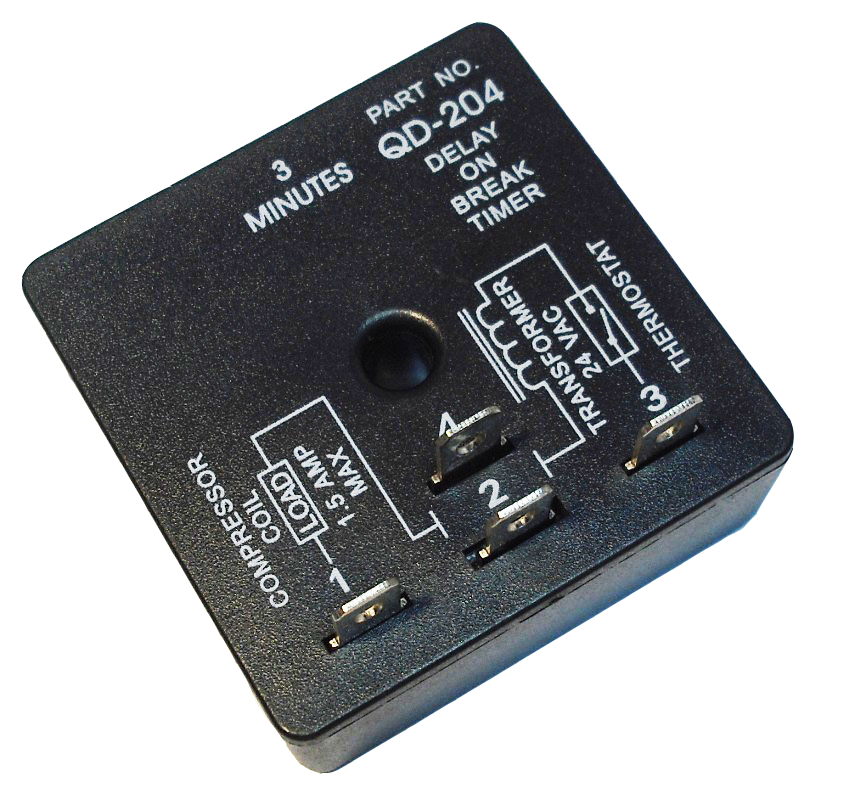

Model: QD-204 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ Output Ratings:Maximum: 1.5 amps; Minimum: 40 mA; Inrush: 15 amps Time Delay:3 minute fixed

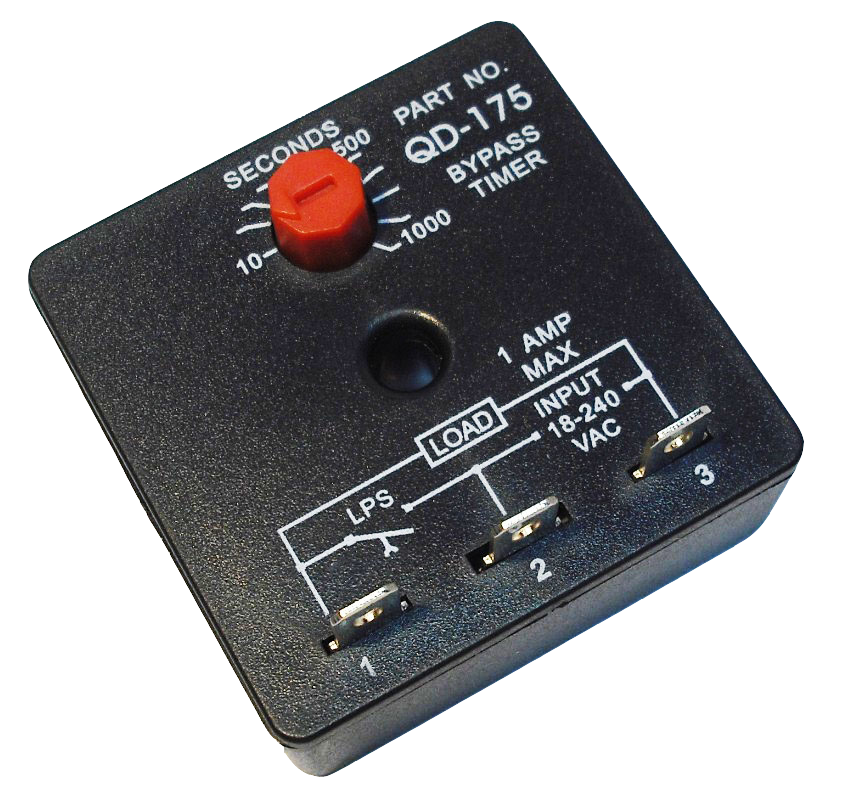

Model: QD-175 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ Output Ratings:Maximum: 1 amps; Minimum: 40 mA; Inrush: 10 amps; Time Delay: 10-1 ,000 seconds Replaces: Mars 32395,Supco TDP68, ICM 175

Model: QD-101 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ

Model: QD-100 Input: Line Voltage: 18-240 VAC/VDC; Line Frequency: 50/60 HZ

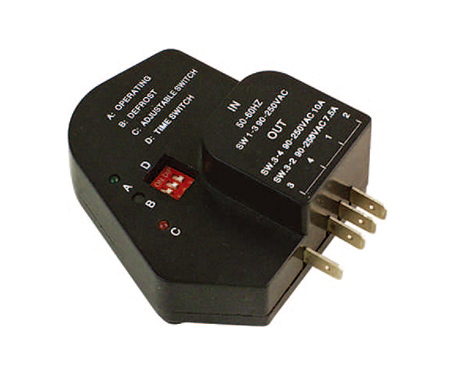

• Model:DS-ALL;

• Input Voltage: 90-250VAC/50-60Hz T1-3;

• Max current operating cycle: Defrost 8A T1-2,Cooling 5A T1-4

• Max current defrost cycle 5A;

• Adjustable Timing:Defrost Time 15,21,25,32 min,(+/-1s),Cycle Time 6,8,12,24 hr.(+/-20s)

• Power consumption 1W;  Applicable Environmental Temperature:0°-160℉(-18℃-71℃)

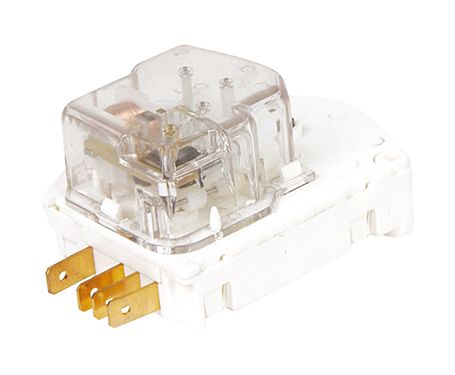

Model: DS-004/R-2496 ; Working Cycle Time: 50Hz;  24hr ; 60Hz: 20hr ; Defrost Time: 50Hz;  96min ; 60Hz: 80min

Model: DS-004/R-2290 ; Working Cycle Time: 50Hz;  22hr42m ; 60Hz: 20hr ; Defrost Time: 50Hz;  90min ; 60Hz: 75min
